Part number: PA9006JM

• Availability:
• Price:
• Description:

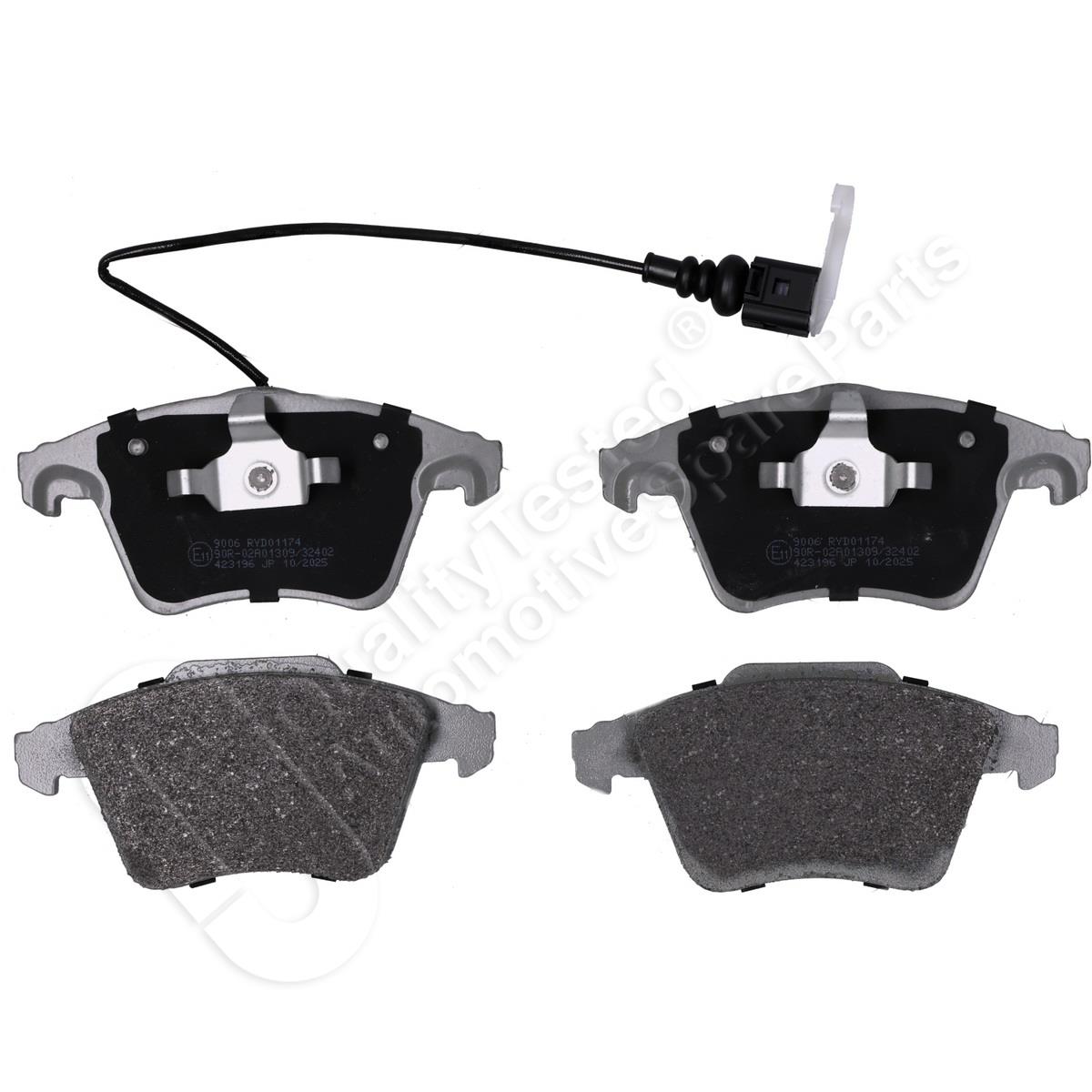

  Brake Pad Set, disc brake
• WVA Number
  23469
• Wear Warning Contact
  with integrated wear warning contact
• Width 1 [mm]
  155,2
• Width 2 [mm]
  156,5
• Height 1 [mm]
  73,4
• Height 2 [mm]
  74,8
• Thickness 1 [mm]
  20,1
• Thickness 2 [mm]
  18,8
• Number of wear indicators [per axle]
  1
• Brake System
  Teves
• Fitting Position
  Front Axle
• WVA Number
  23835
• WVA Number
  23749
• Sensor Length [mm]
  311
• Barcode:
  8057333339897
• WARRANTY INFO:
  2 YEARS

OEM Codes

• 7L6698151F (AUDI)
• 7L6698151F (SEAT)
• 7L6698151F (SKODA)
• 7L6698151F (VW)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
VW TOUAREG (7LA, 7L6, 7L7) 2.5 R5 TDI	128	2461	5	01-2003/05-2010	BAC	Diesel
VW TOUAREG (7LA, 7L6, 7L7) 2.5 R5 TDI	120	2461	5	08-2003/05-2010	BLK	Diesel
VW TOUAREG (7LA, 7L6, 7L7) 3.0 TDI	155	2967	6	04-2006/05-2010	BUN	Diesel
VW TOUAREG (7LA, 7L6, 7L7) 3.0 V6 TDI	176	2967	6	11-2007/05-2010	CASA	Diesel
VW TOUAREG (7LA, 7L6, 7L7) 3.0 V6 TDI	165	2967	6	11-2004/05-2010	BKS	Diesel
VW TOUAREG (7LA, 7L6, 7L7) 5.0 V10 TDI	230	4921	10	10-2002/05-2010	AYH	Diesel
VW TOUAREG (7LA, 7L6, 7L7) 6.0 W12	331	5998	12	08-2004/05-2010	BJN	Benzina
VW TOUAREG (7P5) 4.2 V8 TDI	250	4134	8	01-2010/03-2018	CKDA	Diesel
