Search By Code DI293JM

Part number: DI293JM

Availability:
Price:
Description:

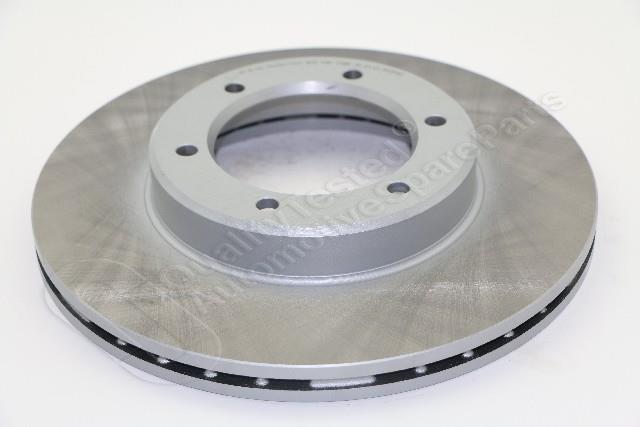

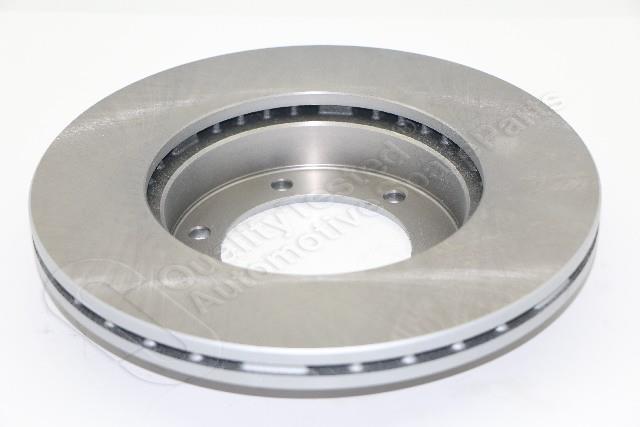

Brake Disc
Fitting Position
Front Axle
Bolt Hole Circle Ø [mm]
100
Height [mm]
51
Outer Diameter [mm]
287
Brake Disc Thickness [mm]
22
Minimum thickness [mm]
21
Number of bores
6
Brake Disc Type
Vented
Test Mark
ECE R90 APPROVED
Surface
Painted
for OE number
4351226100
Barcode:
8057333009622
WARRANTY INFO:
2 YEARS

OEM Codes

4351228160 (TOYOTA)
4351228130 (TOYOTA)
4351226100 (SUZUKI)
4351226100 (TOYOTA)
4351226081 (TOYOTA)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
TOYOTA HIACE II Furgonato (LH5_, YH7_, LH7_, LH6_, YH6_, 2.2 D	49	2173	4	12-1982/11-1989	L	Diesel

TOYOTA HIACE II Furgonato (LH5_, YH7_, LH7_, LH6_, YH6_, 2.4 D	55	2446	4	12-1982/11-1989	2L	Diesel

TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.2 D (H5G)	49	2173	4	12-1982/11-1989	L	Diesel

TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.4 D (H5G)	55	2446	4	04-1984/08-1989	2L	Diesel

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4	88	2438	4	08-1989/08-1995	2RZ-E	Benzina

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 4WD	88	2438	4	08-1989/08-1995	2RZ-E	Benzina

TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 (RZH103)	88	2438	4	08-1989/08-2003	2RZ-E	Benzina

TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 4WD	88	2438	4	08-1989/07-1995	2RZ-E	Benzina

TOYOTA LITEACE Furgonato (_R2__V) 2.2 (YR29LV)	72	2237	4	01-1992/01-1995	4Y-EC	Benzina
