Part number: DI2049JM

• Availability:
• Price:
• Description:

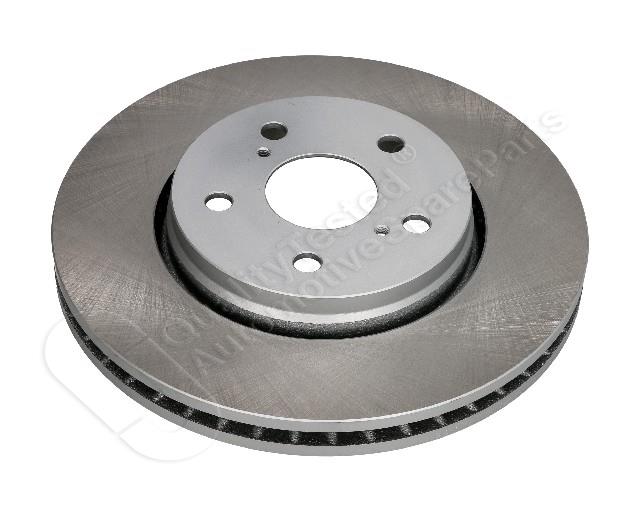

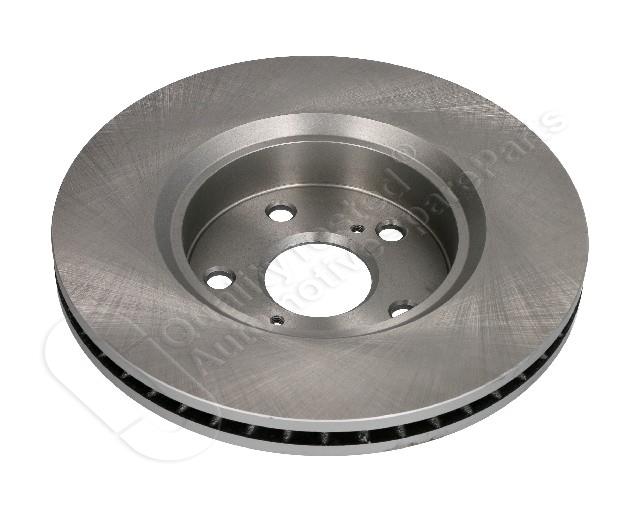

  Brake Disc
• Fitting Position
  Front Axle
• Bolt Hole Circle Ø [mm]
  62
• Height [mm]
  50
• Outer Diameter [mm]
  299
• Brake Disc Thickness [mm]
  28
• Minimum thickness [mm]
  26
• Number of bores
  5
• Brake Disc Type
  Vented
• Surface
  Painted
• for OE number
  43512F4010
• Barcode:
  8057333008878
• WARRANTY INFO:
  2 YEARS

Previous Next

OEM Codes

• 43512F4010 (TOYOTA)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
TOYOTA CH-R (NGX1, NGX5_, ZYX1_) 1.2 (NGX10_)	85	1197	4	10-2016/ -		Benzina
TOYOTA CH-R (NGX1, NGX5_, ZYX1_) 1.2 4WD (NGX50_)	85	1197	4	10-2016/ -		Benzina
TOYOTA CH-R (NGX1, NGX5_, ZYX1_) 1.8 Hybrid (ZYX10_)	72	1798	4	10-2016/ -		Benzina/Elettrico
TOYOTA CH-R (NGX1, NGX5_, ZYX1_) 1.8 Hybrid (ZYX10_)	90	1798	4	10-2016/ -		Benzina/Elettrico
TOYOTA CH-R (NGX1, NGX5_, ZYX1_) 2.0 Hybrid (MAXH10)	112	1987	4	10-2019/ -
TOYOTA C-HR VAN (_X1_) 1.8 Hybrid (ZYX10, ZYX11)	72	1798	4	10-2016/ -		Benzina/Elettrico
TOYOTA COROLLA (_E21_) 2.0 Hybrid (MZEH12)	135	1987	4	05-2021/ -		Benzina/Elettrico
TOYOTA COROLLA (_E21_) 2.0 Hybrid (MZEH12)	112	1987	4	02-2019/ -
TOYOTA COROLLA Station wagon (_E21_) 2.0 Hybrid (MZEH12)	112	1987	4	02-2019/ -
TOYOTA COROLLA Station wagon (_E21_) 2.0 Hybrid (MZEH12)	135	1987	4	05-2021/ -		Benzina/Elettrico
