Teilenummer: DIW05JM

• Verfügbarkeit:
• Preis:
• Beschreibung:

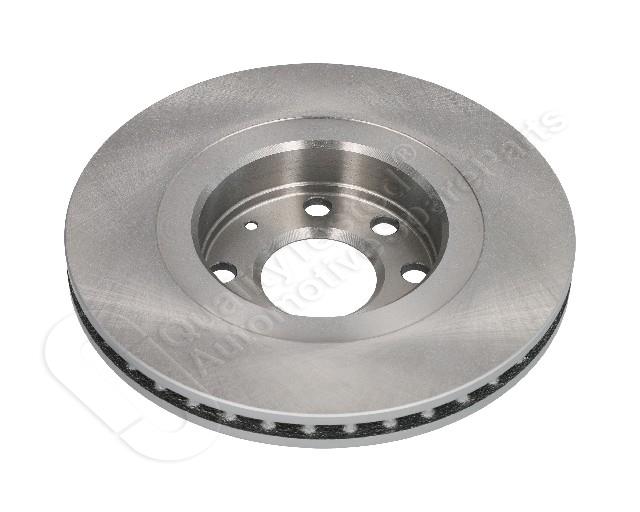

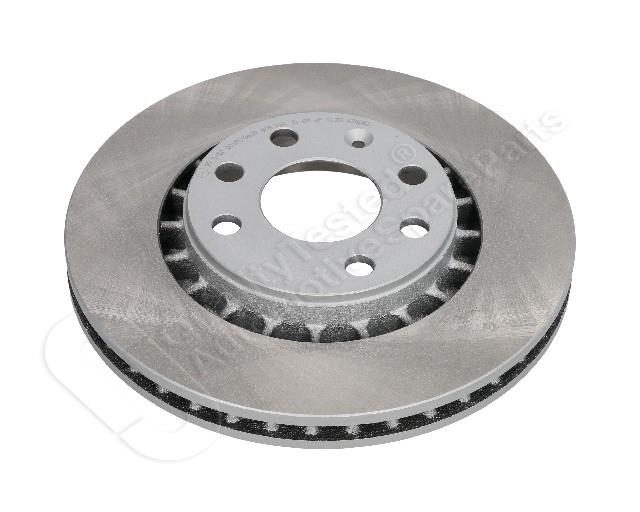

  Bremsscheibe
• Einbauposition
  Vorderachse
• Lochkreis-Ø [mm]
  60
• Höhe [mm]
  41,2
• Außendurchmesser [mm]
  255,8
• Bremsscheibendicke [mm]
  23,8
• Mindestdicke [mm]
  22
• Anzahl der Bohrungen
  4
• Bremsscheibenart
  belüftet
• Prüfzeichen
  ECE R90 APPROVED
• Oberfläche
  lackiert
• Anzugsdrehmoment [Nm]
  110
• für OE-Nummer
  5561178J02
• Barcode:
  8052553896939
• GARANTIEINFORMATIONEN:
  2 JAHRE

Previous Next

OEM-Codes

• 96179110 (CHEVROLET)
• 96179110 (DAEWOO)
• 96179110 (GENERAL MOTORS)
• 96179110 (LOTUS)
• 96179110 (OPEL)
• 96179110 (VAUXHALL)
• 93182282 (OPEL)
• 93182282 (VAUXHALL)
• 90487402 (CHEVROLET)
• 90487402 (DAEWOO)
• 90487402 (GENERAL MOTORS)
• 90487402 (OPEL)
• 90487402 (VAUXHALL)
• 90295087 (DAEWOO)
• 90295087 (GENERAL MOTORS)
• 90295087 (OPEL)
• 90295087 (VAUXHALL)
• 90272326 (VAUXHALL)
• 90250546 (DAEWOO)
• 90250546 (GENERAL MOTORS)
• 90250546 (OPEL)
• 90250546 (PONTIAC)
• 90250546 (VAUXHALL)
• 90065903 (BEDFORD)
• 569042 (OPEL)
• 569041 (OPEL)
• 569018 (OPEL)
• 569013 (OPEL)
• 569011 (OPEL)
• 569008 (OPEL)
• 569001 (OPEL)
• 5561178J02 (SUZUKI)

Anwendungen

Beschreibung	KW	CCM	Zylinder	von/bis	Motorcode	Stromversorgung
DAEWOO ESPERO (KLEJ) 1.5 16V	66	1498	4	02-1995/06-1999	A15MF	Benzina
DAEWOO ESPERO (KLEJ) 1.8	66	1796	4	02-1995/09-1999	C18LE	Benzina
DAEWOO ESPERO (KLEJ) 1.8	70	1796	4	02-1995/06-1999	C18LE	Benzina
DAEWOO ESPERO (KLEJ) 2.0	77	1998	4	02-1995/06-1999	C20LE	Benzina
DAEWOO NEXIA (KLETN) 1.5 16V	66	1498	4	02-1995/08-1997	A15MF	Benzina
DAEWOO NEXIA Tre volumi (KLETN) 1.5 16V	66	1498	4	02-1995/08-1997	A15MF	Benzina
OPEL ASCONA C (81_, 86_, 87_, 88_) 2.0 i GT	95	1998	4	03-1987/08-1988	20 SEH	Benzina
OPEL ASCONA C 2 volumi /Coda spiovente (84_, 89_) 2.0 i GT	95	1998	4	03-1987/08-1988	20 SEH	Benzina
OPEL ASTRA F (56_, 57_) 1.4 i	44	1389	4	09-1991/09-1998	C 14 NZ	Benzina
OPEL ASTRA F (56_, 57_) 1.4 i 16V	66	1389	4	02-1996/09-1998	X 14 XE	Benzina
OPEL ASTRA F (56_, 57_) 1.4 Si	60	1389	4	03-1992/09-1998	C 14 SE	Benzina
OPEL ASTRA F (56_, 57_) 1.6 i	52	1598	4	05-1993/07-1996	X 16 SZ	Benzina
OPEL ASTRA F (56_, 57_) 1.6 i	55	1598	4	03-1992/09-1998	C 16 NZ	Benzina
OPEL ASTRA F (56_, 57_) 1.7 D	42	1700	4	03-1992/09-1992	17 D	Diesel
OPEL ASTRA F (56_, 57_) 1.7 D	44	1700	4	07-1992/09-1998	17 DR	Diesel
OPEL ASTRA F (56_, 57_) 1.7 TD	50	1700	4	11-1994/09-1998	X 17 DTL	Diesel
OPEL ASTRA F (56_, 57_) 1.7 TDS	60	1686	4	03-1992/09-1998	17 DT (TC4EE1)	Diesel
OPEL ASTRA F (56_, 57_) 1.8 i 16V	92	1799	4	06-1993/10-1994	C 18 XE	Benzina
OPEL ASTRA F (56_, 57_) 1.8 i 16V	85	1799	4	11-1994/09-1998	C 18 XEL	Benzina
OPEL ASTRA F (56_, 57_) 2.0 i	85	1998	4	03-1992/09-1998	C 20 NE	Benzina
OPEL ASTRA F (56_, 57_) 2.0 i 16V	100	1998	4	02-1995/09-1998	X 20 XEV	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.4 i	44	1389	4	09-1991/01-1998	C 14 NZ	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.4 i 16V	66	1389	4	09-1996/02-1998	X 14 XE	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.4 Si	60	1389	4	03-1992/01-1998	C 14 SE	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.6 i	55	1598	4	09-1991/01-1998	C 16 NZ	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.7 D	44	1700	4	07-1992/01-1998	17 DR	Diesel
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.7 D	42	1700	4	12-1991/09-1992	17 D	Diesel
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.7 TD	50	1700	4	11-1994/01-1998	X 17 DTL	Diesel
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.7 TDS	60	1686	4	12-1991/01-1998	17 DT (TC4EE1)	Diesel
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.8 i 16V	85	1799	4	09-1994/01-1998	C 18 XEL	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 1.8 i 16V	92	1799	4	06-1993/08-1994	C 18 XE	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 2.0 GSI 16V	110	1998	4	09-1991/01-1998	C 20 XE	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 2.0 i	85	1998	4	09-1991/01-1998	C 20 NE	Benzina
OPEL ASTRA F 2 volumi /Coda spiovente (53_, 54_, 58_, 5 2.0 i 16V	100	1998	4	02-1995/01-1998	X 20 XEV	Benzina
OPEL ASTRA F Cabriolet (53_B) 1.4 i 16V	66	1389	4	01-1996/03-2001	X 14 XE	Benzina
OPEL ASTRA F Cabriolet (53_B) 1.8 i 16V	85	1799	4	11-1994/03-2001	C 18 XEL	Benzina
OPEL ASTRA F Cabriolet (53_B) 2.0 i	85	1998	4	03-1993/10-1994	C 20 NE	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 1.4 i	44	1389	4	09-1991/01-1998	C 14 NZ	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 1.4 i 16V	66	1389	4	02-1996/01-1998	X 14 XE	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 1.4 Si	60	1389	4	03-1992/01-1998	C 14 SE	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 1.6 i	55	1598	4	09-1991/01-1998	C 16 NZ	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 1.7 D	42	1700	4	12-1991/09-1992	17 D	Diesel
OPEL ASTRA F Station wagon (51_, 52_) 1.7 D	44	1700	4	07-1992/01-1998	17 DR	Diesel
OPEL ASTRA F Station wagon (51_, 52_) 1.7 TD	50	1700	4	11-1994/01-1998	X 17 DTL	Diesel
OPEL ASTRA F Station wagon (51_, 52_) 1.7 TDS	60	1686	4	12-1991/01-1998	17 DT (TC4EE1)	Diesel
OPEL ASTRA F Station wagon (51_, 52_) 1.8 i 16V	92	1799	4	06-1993/01-1998	C 18 XE	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 1.8 i 16V	85	1799	4	07-1994/01-1998	C 18 XEL	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 2.0 i	85	1998	4	09-1991/07-1994	C 20 NE	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 2.0 i 16V	110	1998	4	03-1993/01-1998	C 20 XE	Benzina
OPEL ASTRA F Station wagon (51_, 52_) 2.0 i 16V	100	1998	4	02-1995/01-1998	X 20 XEV	Benzina
OPEL CALIBRA A (85_) 2.0 i	85	1998	4	08-1989/12-1996	C 20 NE	Benzina
OPEL CALIBRA A (85_) 2.0 i 16V	110	1998	4	06-1990/02-1994	C 20 XE	Benzina
OPEL CALIBRA A (85_) 2.0 i 16V	100	1998	4	02-1994/07-1997	X 20 XEV	Benzina
OPEL CALIBRA A (85_) 2.0 i 16V 4x4	100	1998	4	02-1994/07-1997	X 20 XEV	Benzina
OPEL CALIBRA A (85_) 2.0 i 16V 4x4	110	1998	4	06-1990/02-1994	C 20 XE	Benzina
OPEL CALIBRA A (85_) 2.0 i 4x4	85	1998	4	06-1990/07-1997	C 20 NE	Benzina
OPEL KADETT E (39_, 49_) 1.8 i	66	1796	4	08-1989/05-1992	18 SV	Benzina
OPEL KADETT E (39_, 49_) 1.8 i	74	1796	4	10-1985/08-1986	C 18 NE	Benzina
OPEL KADETT E (39_, 49_) 1.8 S	62	1798	4	09-1987/08-1991	E 18 NV	Benzina
OPEL KADETT E (39_, 49_) 2.0 i	85	1998	4	09-1987/05-1992	20 NE	Benzina
OPEL KADETT E 2 volumi /Coda spiovente (33_, 34_, 43_, 1.8 E	74	1796	4	10-1985/08-1986	C 18 NE	Benzina
OPEL KADETT E 2 volumi /Coda spiovente (33_, 34_, 43_, 1.8 GSI	85	1796	4	09-1984/08-1986	18 E	Benzina
OPEL KADETT E 2 volumi /Coda spiovente (33_, 34_, 43_, 1.8 i	66	1796	4	06-1985/08-1991	C 18 NT	Benzina
OPEL KADETT E 2 volumi /Coda spiovente (33_, 34_, 43_, 1.8 S	62	1796	4	09-1987/08-1991	E 18 NV	Benzina
OPEL KADETT E 2 volumi /Coda spiovente (33_, 34_, 43_, 2.0 GSI	85	1998	4	09-1986/08-1991	20 NE	Benzina
OPEL KADETT E 2 volumi /Coda spiovente (33_, 34_, 43_, 2.0 GSI	95	1998	4	09-1986/08-1991	20 SEH	Benzina
OPEL KADETT E 2 volumi /Coda spiovente (33_, 34_, 43_, 2.0 GSI 16V	110	1998	4	03-1988/08-1991	20 XEJ	Benzina
OPEL KADETT E Cabriolet (43B_) 2.0 i	85	1998	4	10-1986/02-1993	20 NE	Benzina
OPEL KADETT E Station wagon (35_, 36_, 45_, 46_) 2.0 i	85	1998	4	09-1987/08-1991	20 NE	Benzina
OPEL VECTRA A (86_, 87_) 1.8 i Cat.	66	1796	4	03-1990/11-1995	C 18 NZ	Benzina
OPEL VECTRA A (86_, 87_) 1.8 S 4x4	65	1796	4	01-1989/07-1989	E 18 NVR	Benzina
OPEL VECTRA A (86_, 87_) 2.0	74	1998	4	09-1988/09-1989	C 20 NEF	Benzina
OPEL VECTRA A (86_, 87_) 2.0 i	85	1998	4	09-1988/10-1990	20 NE	Benzina
OPEL VECTRA A (86_, 87_) 2.0 i	95	1998	4	09-1988/09-1992	20 SEH	Benzina
OPEL VECTRA A (86_, 87_) 2.0 i 16V	100	1998	4	08-1992/08-1995	X 20 XEV	Benzina
OPEL VECTRA A (86_, 87_) 2.0 i 16V 4x4	100	1998	4	06-1994/11-1995	X 20 XEV	Benzina
OPEL VECTRA A (86_, 87_) 2.0 i 4x4	95	1998	4	08-1989/07-1992	20 SEH	Benzina
OPEL VECTRA A (86_, 87_) 2.0 i 4x4	85	1998	4	01-1989/10-1990	20 NE	Benzina
OPEL VECTRA A (86_, 87_) 2000 16V 4x4	110	1998	4	01-1989/10-1990	20 XEJ	Benzina
OPEL VECTRA A (86_, 87_) 2000/GT 16V	110	1998	4	01-1989/06-1994	20 XEJ	Benzina
OPEL VECTRA A 2 volumi /Coda spiovente (88_, 89_) 2.0	74	1998	4	04-1988/09-1989	C 20 NEF	Benzina
OPEL VECTRA A 2 volumi /Coda spiovente (88_, 89_) 2.0 i	85	1998	4	09-1988/10-1990	20 NE	Benzina
OPEL VECTRA A 2 volumi /Coda spiovente (88_, 89_) 2.0 i 16V	110	1998	4	02-1989/10-1990	20 XEJ	Benzina
OPEL VECTRA A 2 volumi /Coda spiovente (88_, 89_) 2.0 i GT	95	1998	4	09-1988/11-1995	20 SEH	Benzina
OPEL VECTRA B (36_) 1.6 i	55	1598	4	10-1995/04-2002	X 16 SZR	Benzina
OPEL VECTRA B (36_) 1.6 i 16V	74	1598	4	10-1995/04-2002	X 16 XEL	Benzina
OPEL VECTRA B (36_) 1.7 TD	60	1686	4	10-1995/12-1998	X 17 DT (TC4EE1)	Diesel
OPEL VECTRA B (36_) 1.8 i 16V	85	1796	4	10-1995/09-2000	X 18 XE1	Benzina
OPEL VECTRA B (36_) 2.0 DI 16V	60	1995	4	11-1996/04-2002	X 20 DTL	Diesel
OPEL VECTRA B (36_) 2.5 i V6	125	2498	6	10-1995/09-2000	X 25 XE	Benzina
OPEL VECTRA B 2 volumi /Coda spiovente (38_) 1.6 i	55	1598	4	10-1995/07-2003	X 16 SZR	Benzina
OPEL VECTRA B 2 volumi /Coda spiovente (38_) 1.6 i 16V	74	1598	4	10-1995/07-2002	X 16 XEL	Benzina
OPEL VECTRA B 2 volumi /Coda spiovente (38_) 1.7 TD	60	1686	4	10-1995/12-1998	X 17 DT (TC4EE1)	Diesel
OPEL VECTRA B 2 volumi /Coda spiovente (38_) 1.8 i 16V	85	1796	4	10-1995/09-2000	X 18 XE1	Benzina
OPEL VECTRA B 2 volumi /Coda spiovente (38_) 2.0 DI 16V	60	1995	4	11-1996/06-2000	X 20 DTL	Diesel
OPEL VECTRA B 2 volumi /Coda spiovente (38_) 2.0 i 16V	100	1998	4	09-1995/06-2000	C 20 SEL	Benzina
OPEL VECTRA B 2 volumi /Coda spiovente (38_) 2.5 i V6	125	2498	6	10-1995/09-2000	X 25 XE	Benzina
OPEL VECTRA B Station wagon (31_) 1.6 i	55	1598	4	11-1996/06-2000	X 16 SZR	Benzina
OPEL VECTRA B Station wagon (31_) 1.6 i 16V	74	1598	4	11-1996/07-2002	X 16 XEL	Benzina
OPEL VECTRA B Station wagon (31_) 1.8 i 16V	85	1796	4	11-1996/09-2000	X 18 XE1	Benzina
